Full Plastic Tweezers

High precision plastic tweezers are available in Carbon Fiber (CF) and Polyvinylidene fluoride carbon fibre reinforced (PVDF).

Carbon Fiber (CF) tweezers are best for sensitive electronic components, micro-mechanical parts, glass and ceramic substrates, capillary. Features include:

  • PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre
  • Heat stabilized
  • Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
  • Low friction, self lubricating properties, excellent wear and abrasion resistance
  • Good heat capability
  • Good chemical resistance (oils, grease, fuels, non polar solvents); not resistant to strong acids, alkalis and hot water or steam
  • ESD safe material, (avoid powder attraction, sparks generation, ignition sources).
  • Very low coefficient of linear thermal expansion
  • Typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)

Polyvinylidene fluoride carbon fibre reinforced tweezers have excellent mechanical strength and toughness and a smooth surface with the following features:.

  • Heat stabilized, high heat capability, continuous use temperature up to 150°C
  • High purity (clean room and medical devices approved, low extraction value)
  • Excellent chemical resistance to most aggressive substances (mineral and organic acid) and solvents (hydrocarbons, alcohols, halogenated), resistant to halogens
  • Outstanding resistance to hydrofluoric acid (40% conc., 90°C), nitric acid (50% conc., 90°C), hydrochloric acid (36% conc., 90°C)
  • High abrasion resistant
  • Resistant to UV and nuclear radiation (sterilisation)
  • ESD safe material, (avoid powder attraction, sparks generation, ignition sources)
  • Typical applications include handling of very scratch- and contamination-sensitive components, cleaning and etching processes.

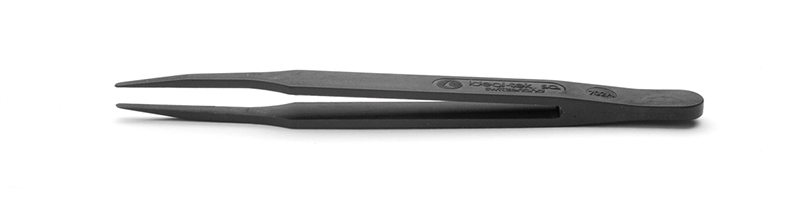

Style 702A

Full plastic tweezers with flat duckbill tips. ESD safe.

Style 702A
Style 702A
Catalog Style Material OAL mm A mm B mm Price Unit
702A.CF Style 702A Carbon fiber 115 0.50 2.00 4.00 each
702A.SV Style 702A PVDF 115 0.50 2.00 9.00 each

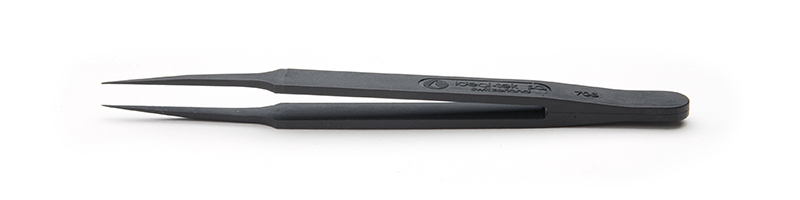

Style 705

Full plastic tweezers with fine, sharp tips. ESD safe.

Style 705
Style 705
Catalog Style Material OAL mm A mm B mm Price Unit
705.CF Style 705 Carbon fiber 115 0.50 0.50 4.00 each
705.SV Style 705 PVDF 115 0.50 0.50 9.00 each

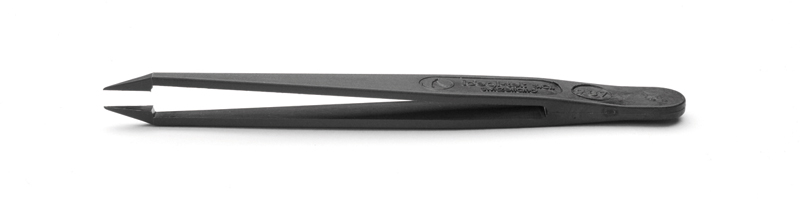

Style 707

Full plastic tweezers with angled, pointed tips. ESD safe.

Style 707
Style 707
Catalog Style Material OAL mm A mm B mm Price Unit
707.CF Style 707 Carbon fiber 115 0.70 0.50 4.00 each
707.SV Style 707 PVDF 115 0.70 0.50 9.00 each

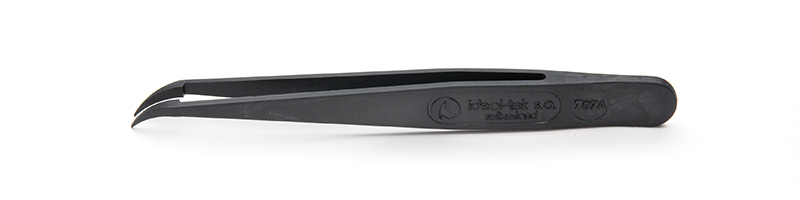

Style 707A

Carbon fiber tweezers with curved, angled, pointed tips

Style 707A
Style 707A
Catalog Style Material OAL mm A mm B mm Price Unit
707A.CF Style 707A Carbon fiber 115 0.50 0.60 4.00 each
707A.SV Style 707A PVDF 115 0.50 0.60 9.00 each

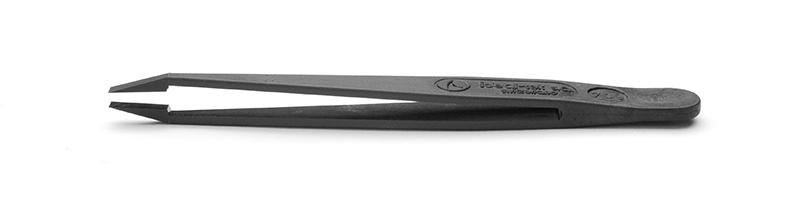

Style 709

Full plastic tweezers with angled, squared, flat tips. ESD safe.

Style 709
Style 709
Catalog Style Material OAL mm A mm B mm Price Unit
709.CF Style 709 Carbon fiber 115 0.30 3.30 4.00 each
709.SV Style 709 PVDF 115 0.30 3.30 9.00 each

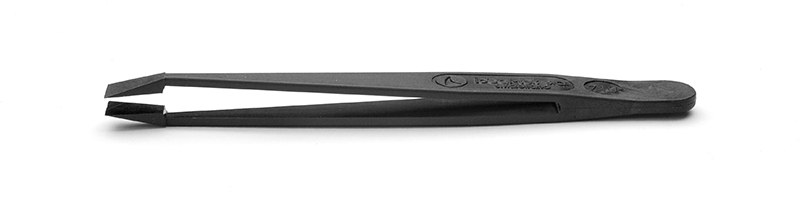

Style 710

Full plastic tweezers with angled, squared, flat, trapezoidal shape tips. ESD safe.

Style 710
Style 710
Catalog Style Material OAL mm A mm B mm Price Unit
710.CF Style 710 Carbon fiber 115 0.30 7.70 4.00 each
710.SV Style 710 PVDF 115 0.30 7.70 9.00 each
